Brand: DURMAPRESS
Function
- Essential Equipment: Locking machine is necessary in duct manufacturing as it can produce various locking types to meet different requirements.
- Processing Capability: Standard model can handle galvanized sheet metal with thickness from 0.5mm to 1.5mm.

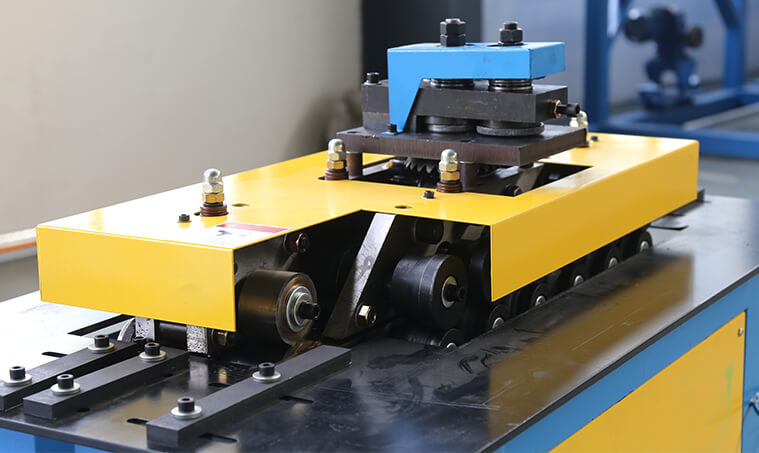

- Durable Material: Equipped with high-strength rolling reels made of GCr15 steel, which extends machine life by over 5 times and significantly boosts efficiency.
- Forming Functions: Capable of forming 6 shapes (optionally 7 functions) for sheet connection.
- Customization Options: S-shape and snap-lock forms can be customized according to sheet locking needs.

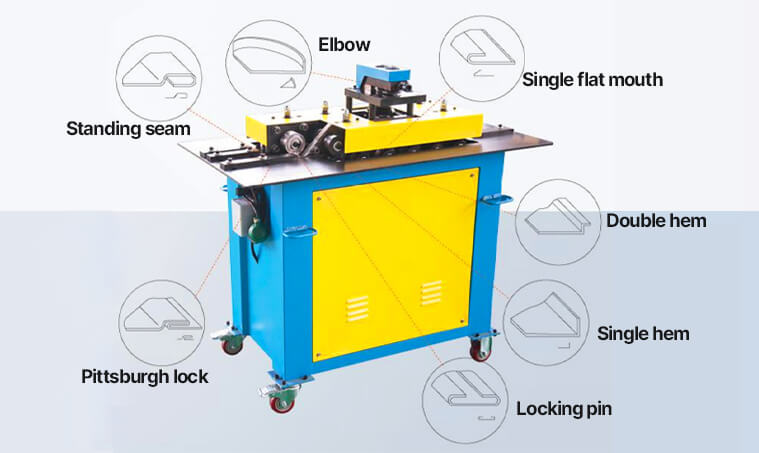

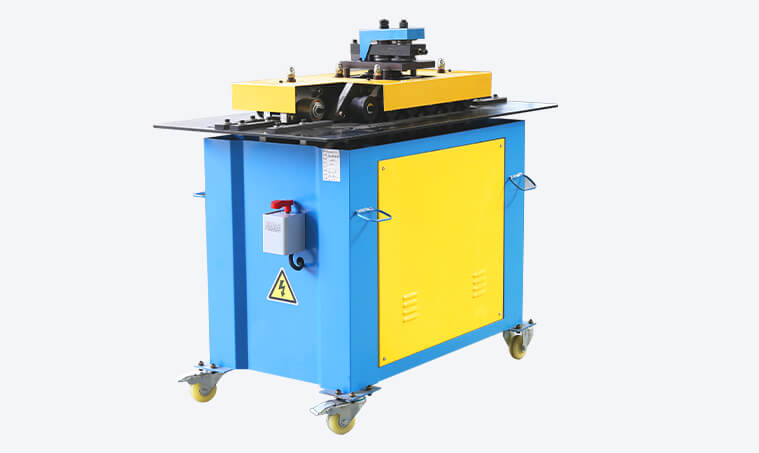

Lock forming machine is a necessary equipment for HVAC air duct manufacturing. Multi-function lock forming machine can form 6 shapes (7-function is available) to finish sheet jointing. Six shapes include Pittsburgh(Female), Right angle(Male), Standing seam, C shape locking pin, Curving angle and Z shape. What’s more, we can customize S shape and snap lock for sheet locking. The standard machine can make 0.5-1.5 mm thickness galvanized sheet. The lock forming machine usually has two model, one’s max thickness is 1.2 mm, another’s max thickness is 1.5 mm. Our company specially introduce high-strength rolling reel made of GCR 15 steel which can prolong the machine life by more than 5 times and greatly heighten the efficiency. The lock forming machine can be divided into two types according to duct shape. One type is square duct lock forming machine, for example, 6-function lock forming machine. Second is round duct lock forming machine, for example, longitudinal seam connection lock forming machine. The square duct lock forming machine is a part of rectangular ventilation air tube forming machines, it can be used with other rectangular HVAC duct forming machines together to achieve a whole duct production, such as TDF flange forming machine, pneumatic TDF sheet metal folding machine, grooving machine, electric cutting machine, square duct lock seam closing machine, clips cutting machine, etc. The round duct lock forming machine can be used with the electric rolling machine, round duct lock seam closing machine, bead roller and so on.
- 2 stations available on the machine as per the following,1.Claw shape 2.”U” shape.
- 380V/50HZ/3PH is the regular standard Voltage for our lock forming machine.Yet we can manage them into 220V/50HZ/1PH or 420V/50HZ/3PH and etc.Cost will be free of charge as a cooperation to our international customers!
- Preda Machine provides rollers and axles changing the whole life time of the machine.
- Customized roll forming flange size and shape can be achieved by Preda Machine in case required.
- Two electric coil cradles, 4 material trays (5-7 teach roll)
- One rack One host (line 2 host)
- Two stainless steel roller convey platforms
- One fixed joint locking machine
- One duplex TDF flange forming machine
- One duplex angle steel flange forming machine
- One servo feeding platform
- One hydraulic folding machine
- One set of computer controlling system

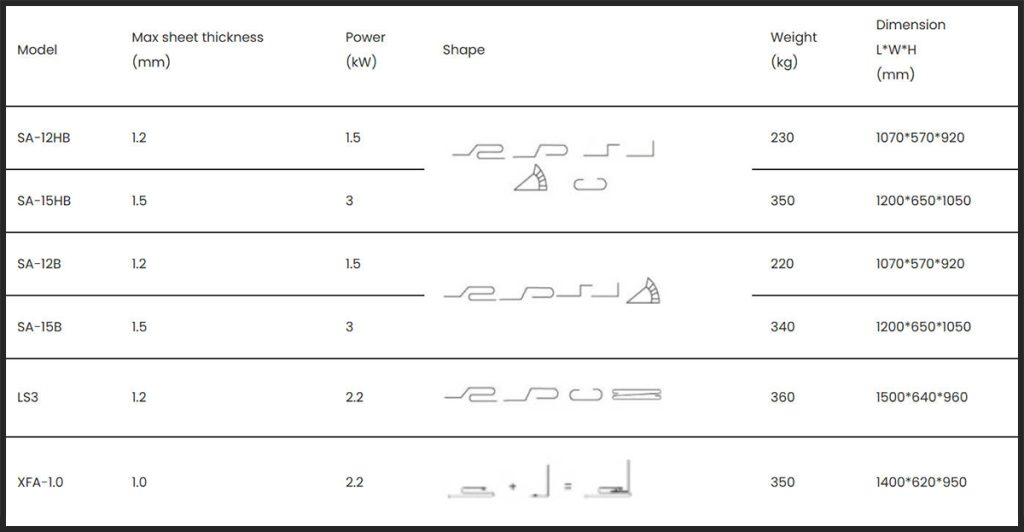

- Technical Data
- Shipping & Packing
Shipping & Packing
Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containersand ship them abroad.
- Why Choose Us
Industry Experts
Professional HVAC Duct Machines Manufacturer
Perfect After-sales
24-hour after-sales response service
Engineer Overseas Service
Our engineers provide 24/7 on-site technical support
- Frequently Asked Questions
- You can choose the shipping company on your own. Or use our forwarder, we will quote you the CIF price.
- If less than one container,we will choose LCL (less container load), it will be cost-efficiency. If you purchase two and above, we will use 20″, 40″ or HQ container according to the machines size.
DURMAPRESS is a mature brand in China. We have CE, ISO and SGS certification to prove our quality. We welcome your visit, seeing is believing.
- T/T (30% advance payment, and 70% balance paid one week before shipment)
- L/C (100% L/C at sight), this should be negotiated first.
We always prepare stock for our clients. Contact us to learn more details.
Normally 15 days.
