Manual Folding Machine
Manual Folding Machine

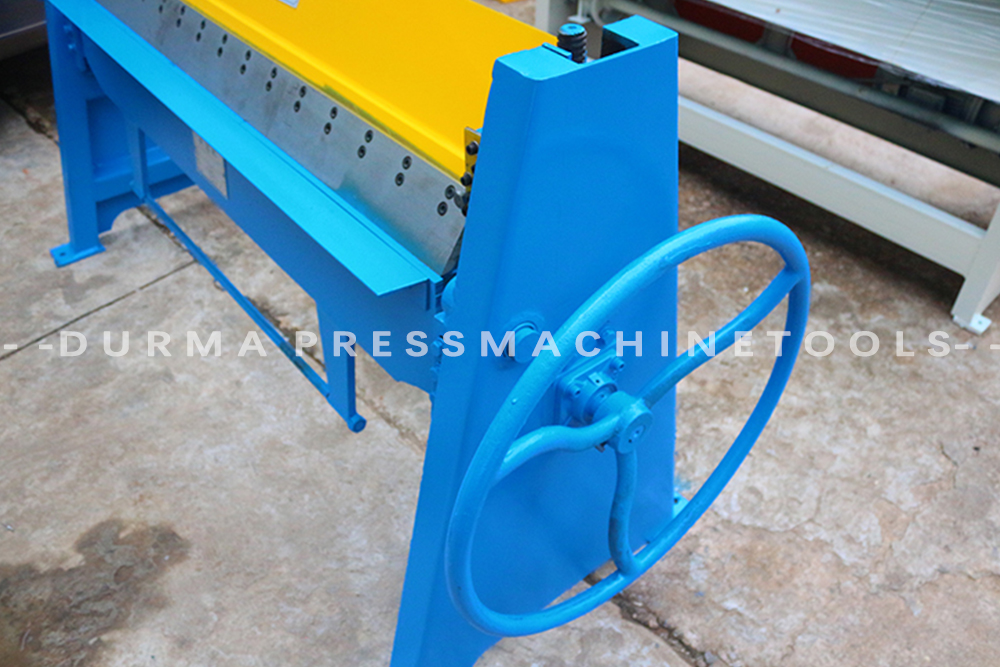

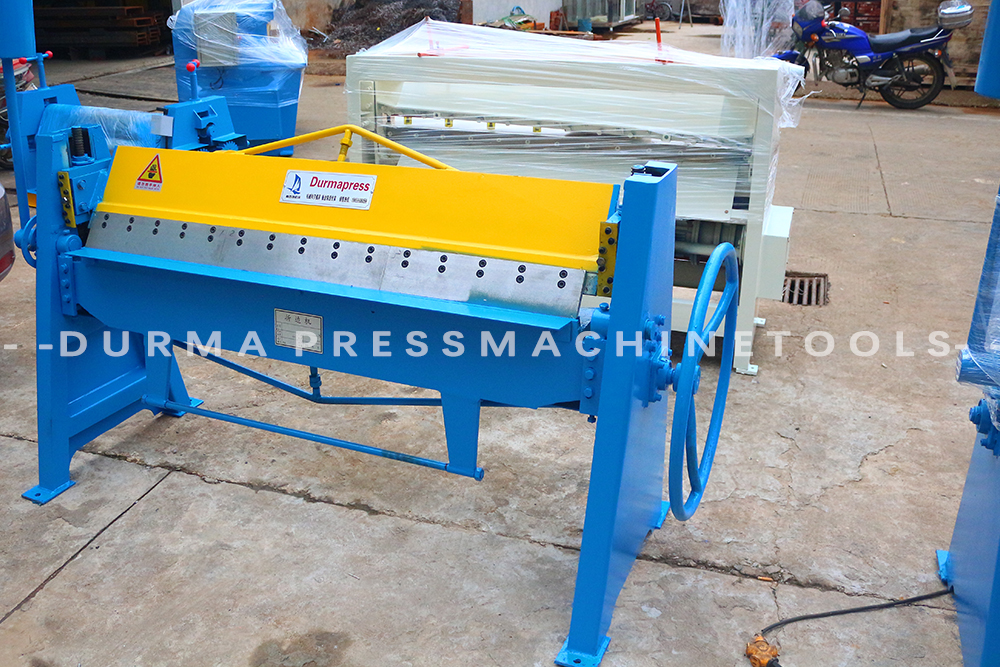

This series machine tools are widely used in folding and flanging colored metal sheet, stainless sheet and steel sheet with 2.5 meter length and 2.5mm or below thickness, it is forming processing equipment for box and duct of home appliance, stainless kitchenware, illumination, hardware furniture, cold&warm ducting, air conditioner equipment, etc.
These series machine tools are hand driven. With its positioning structure, it can Manufacture work pieces with fixed angle and special shape in quantities.
Basic Information
lt’s suitable for duct manufacturing in the mobile sites or forming thin iron metals. lt’s fast,energy-saving and cost-effective.
Description:
The Manual Folding Machine is a sheet metal folding machine that makes rectangular HVAC ducts. Actually, the electric sheet metal folding machine can be divided into two types, electric TDF flange sheet folding machine and electric flat sheet folding machine.
The Machine can be used to bend max thickness 1.5 mm sheet plate. For stainless steel, the machine can make a max thickness of 0.5 mm. Its advantages include higher working speed than manual folding machine and easy operation.
As one part of rectangular HVAC duct making machines, the manual sheet metal folding machine can be used with other rectangular air duct forming machines together to complete a whole duct processing, for example, electric shearing machine, lock forming machine, TDF flange forming machine, beading machine, lock seam closing machine, clips cutting machine, etc. Based on different customers’ requirements and practical operating environments, we can provide different cases of machine series.
We are a professional HVAC duct manufacturing machines supplier. Products mainly consist of auto duct production line, rectangular duct making machine, and round/spiral duct forming machine. Besides, OEM service is available.
It will be perfect assistants between customers and our company when you have questions about the function of duct manufacturing machines, operation way, maintenance of machines. We will send you our answer and help you to solve all problems during the whole processing of choosing machines as soon as possible.
TECHNICAL DATA
Model | Maximum bending thickness | Maximum bending width | Minimum bending angle | Weight(Kg) | Dimension（L×W×H） | BLADE | |
LIGHT | WS-1.2×1300A | 1.2 | 1300 | 35° | 290 | 1950×760×1350 | Sub-knife |
WS 6-1.2×1300B | 1.2 | 1300 | 60° | 290 | 1950×760×1340 | Sub-knife | |
WS -1.2×1500A | 1.2 | 1500 | 35° | 520 | 2150×750×1340 | Sub-knife | |
WS -1.2×1500B | 1.2 | 1500 | 60° | 360 | 2150×750×1350 | Sub-knife | |
WS -1.2×2050A | 1.2 | 2050 | 35° | 580 | 2730×750×1350 | Sub-knife | |
WS -1.2×2050B | 1.2 | 2050 | 60° | 450 | 2730×750×1350 | Sub-knife | |
WS-1.2×1300AC | 1.2 | 1300 | 35° | 290 | 1850×710×1400 | Sub-knife | |
WS-1.2×1300BC | 1.2 | 1300 | 60° | 290 | 1850×710×1400 | Sub-knife | |
WS 1.2×1500AC | 1.2 | 1500 | 35° | 350 | 2200×750×1400 | Sub-knife | |
WS 1.2×1500BC | 1.2 | 1500 | 60° | 350 | 2200×750×1400 | Sub-knife | |
WS 1.2×2050AC | 1.2 | 2050 | 35° | 400 | 2600×730×1400 | Sub-knife | |
WS 1.2×2050BC | 1.2 | 2050 | 60° | 420 | 2600×730×1400 | Sub-knife | |
WS -1.5×1000A | 1.5 | 1000 | 35° | 230 | 1660×750×1350 | Sub-knife | |
WS -1.5×1000B | 1.5 | 1000 | 60° | 230 | 1660×750×1350 | Sub-knife | |
WS -1.5×1300A | 1.5 | 1300 | 35° | 320 | 1985×750×1350 | Sub-knife | |
WS -1.5×1300B | 1.5 | 1300 | 60° | 390 | 1985×750×1350 | Sub-knife | |
WS 1.5×1000AC | 1.5 | 1000 | 35° | 220 | 1640×740×1400 | Sub-knife | |
WS 1.5×1000BC | 1.5 | 1000 | 60° | 220 | 1640×740×1400 | Sub-knife | |
MEDIUM | WS 1.5×1300AC | 1.5 | 1300 | 35° | 350 | 1860×730×1400 | Sub-knife |
WS 1.5×1300BC | 1.5 | 1300 | 60° | 360 | 1860×730×1400 | Sub-knife | |
WS 1.5×1500A | 1.5 | 1500 | 35° | 360 | 2130×790×1370 | Sub-knife | |
WS 1.5×1500B | 1.5 | 1500 | 60° | 480 | 2130×790×1370 | Sub-knife | |
WS 1.5×2050A | 1.5 | 2050 | 35° | 550 | 2650×790×1370 | Sub-knife | |
WS -1.5×2050B | 1.5 | 2050 | 60° | 550 | 2650×790×1370 | Sub-knife | |
WS -1.5×2500A | 1.5 | 2500 | 35° | 1100 | 3100×800×1530 | Sub-knife | |
WS -1.5×2500B | 1.5 | 2500 | 60° | 1100 | 3100×790×1520 | Sub-knife | |
WS 1.5×1500AC | 1.5 | 1500 | 35° | 430 | 2150×730×1400 | Sub-knife | |
WS-1.5×1500BC | 1.5 | 1500 | 60° | 450 | 2150×730×1400 | Sub-knife | |
WS-1.5×2050AC | 1.5 | 2050 | 35° | 560 | 2570×730×1400 | Sub-knife | |
WS-1.5×2050BC | 1.5 | 2050 | 60° | 580 | 2570×730×1400 | Sub-knife | |
WS -2×1300B | 2 | 1300 | 60° | 520 | 1930×820×1370 | Sub-knife | |
WS -2×1500B | 2 | 1500 | 60° | 580 | 2190×650×1380 | Sub-knife | |
WS -2.5×1300B | 2.5 | 1300 | 60° | 700 | 1950×800×1360 | Sub-knife | |
HEAVY | WS -2×2050B | 2 | 2050 | 60° | 950 | 2770×900×1585 | Sub-knife |
WS -2×2500B | 2 | 2500 | 60° | 1500 | 3220×930×1585 | Sub-knife | |
Frequently Asked Questions
- You can choose the shipping company on your own. Or use our forwarder, we will quote you the CIF price.
- If less than one container,we will choose LCL (less container load), it will be cost-efficiency. If you purchase two and above, we will use 20″, 40″ or HQ container according to the machines size.
Durmahvac is a mature brand in China. We have CE, ISO and SGS certification to prove our quality. We welcome your visit, seeing is believing.
- T/T (30% advance payment, and 70% balance paid one week before shipment)
- L/C (100% L/C at sight), this should be negotiated first.
We always prepare stock for our clients. Contact us to learn more details.
Normally 15 days.
