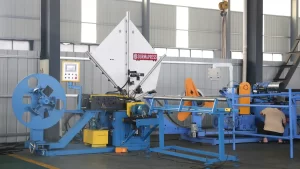

What Is a Spiral Duct Forming Machine?
A spiral duct forming machine is a specialized HVAC fabrication machine designed to produce round, rigid spiral air ducts. These ducts are widely used in commercial buildings, industrial ventilation, and large HVAC systems due to their excellent airflow efficiency, lower leakage rate, and strong structural rigidity.
In simple terms, the machine feeds in metal strips, forms them into a spiral tube, locks the seam tightly, and performs automatic cutting—all in one continuous process.
Why Spiral Ducts Are Popular in HVAC Projects
Spiral ducts have become the preferred choice for many contractors and air-conditioning manufacturers due to:
- Low leakage (better energy efficiency)
- Higher strength compared to longitudinal seams
- Cleaner internal surface for improved airflow
- Lower long-term cost
- Fast production with automated forming machines
A high-quality spiral duct forming machine directly affects the performance and consistency of HVAC duct manufacturing.
Key Specifications to Consider Before Buying
Selecting the right machine means evaluating the specs that truly impact productivity and duct quality. Below are the most important factors.
1. Duct Diameter Range
Standard machines support diameters from 100 mm to 1,500 mm.
If your projects include airports, shopping malls, or industrial spaces, choose a wider range.
Tip:
The wider the range, the more HVAC projects you can cover.
2. Material Compatibility & Thickness
Most machines support:
- Galvanized steel
- Stainless steel
- Aluminum
Typical metal thickness ranges from 0.4–1.2 mm.
If you frequently produce large-diameter ducts, choose a machine that handles 1.0–1.2 mm steel to ensure rigidity.
3. Forming Speed
Machine speed directly impacts daily production volume.
- Standard: 8–20 m/min
- High-speed: 20–40 m/min
For large OEM factories, high-speed models deliver significantly higher efficiency.
4.Lock Seam Type Options
Common seam types include:
- Tube lock seam (most used)
- Overlock seam
- Double seam for added strength
Seam type affects airtightness and structural stability.
5. Cutting Method
The cutting technique iodmpacts edge smoothness and precision.
- Mechanical cutting – economical, low maintenance
- Plasma cutting – higher precision, best for heavy-duty ducts
If your projects require clean, burr-free edges, plasma cutting is the better choice.
6. Control System & Automation
A modern spiral duct forming machine should include:
- PLC control panel
- Automatic lubrication
- Automatic length measurement
- Preset programs for different diameters
These features reduce operator error and improve production stability.
Productivity & Automation Features to Look For
When comparing machines, prioritize features that reduce labor and increase consistency:
- Automatic strip alignment
- Auto decoiler compatibility
- Quick diameter switching
- Real-time monitoring
- Auto fault diagnosis (important for large factories)
Advanced automation is especially valuable for companies producing large volumes daily.
How to Choose the Right Spiral Duct Forming Machine
Below are the most practical selection criteria from a manufacturing and purchasing expert perspective.
1. Match the Machine to Your Project Types
- HVAC contractors → medium-speed machine, wide diameter range
- OEM duct factories → high-speed model + full automation
- Building contractors → flexible size switching + stable seam quality
2. Calculate the Required Daily Output
Ask yourself:
- How many meters of spiral duct do we produce per day?
- Do we need a high-speed model to meet peak demand?
- Will we expand production next year?
The answers help determine the appropriate forming speed.
3. Evaluate Stability & Maintenance Costs
Important factors include:
- Frequency of replacing cutting tools
- Lubrication and cleaning cycles
- Quality of bearings and forming heads
- Brand of electrical components
Low maintenance machines save more money over time.
4. After-Sales Support & Spare Parts
For overseas buyers, reliable service is critical.
Look for:
- Remote troubleshooting
- Global engineer support
- Fast spare-part delivery
- Operator training
Common Mistakes to Avoid When Purchasing
- Only considering the price instead of long-term performance
- Ignoring metal thickness compatibility
- Choosing insufficient forming speed for factory demand
- Not planning for future HVAC project sizes
- Ignoring service availability and spare parts supply
Avoiding these mistakes protects your investment for years.
Conclusion
Choosing the right spiral duct forming machine requires evaluating key specifications such as diameter range, forming speed, material compatibility, seam type, cutting system, and automation level. A well-selected machine will ensure higher productivity, stable duct quality, and long-term savings in HVAC manufacturing.
If you need customized capacity planning or machine recommendations, brands like Durmapress provide complete consultation and overseas technical support.
FAQ: Spiral Duct Forming Machine
A spiral duct forming machine is used to produce round spiral air ducts for HVAC ventilation systems. It forms metal strips into spiral tubes with a strong lock seam and precise cutting.
Most machines can process galvanized steel, aluminum, and stainless steel, typically in the 0.4–1.2 mm thickness range.
Standard machines run at 8–20 m/min.
For large-scale HVAC projects or OEM factories, 20–40 m/min high-speed models are recommended.
Choose based on your project types:
- Commercial HVAC: 150–1,000 mm
- Industrial ventilation: 500–1,500 mm
- General contractors: wide-range machines for flexibility
- Mechanical cutting: Lower maintenance, good for most standard ducts
- Plasma cutting: Higher precision, ideal for thick or high-spec ducts
Yes. Spiral ducts have smoother internal surfaces and lower leakage, which increases airflow efficiency and reduces energy loss.
