The auto duct production line market offers more configuration options than most buyers expect. Line 2, Line 3, Line 4, Line 5, linear layouts, U-shape designs, semi-automatic, fully automatic—each represents a different combination of functions, footprint, labor requirement, and capital investment.
Most shops that buy the wrong line do so for one reason: they evaluated the supplier’s model label rather than their own production requirements. This guide works the other way around. Start with what you make, match a configuration to your real production conditions, and use the checklist sections to evaluate suppliers and validate equipment before purchase.
Quick Selection Guide
If you want a fast starting point before reading the full guide:
The sections below explain how to validate and refine this starting point against your actual workshop conditions.
1.What Is an Auto Duct Production Line?
An auto duct production line is an integrated system that takes flat galvanized steel coil and processes it through a defined sequence of operations—leveling, beading, notching, cutting, seam forming, flange forming, and folding—to produce rectangular duct components ready for downstream assembly.
The defining characteristic is a shared feed path. Material moves from station to station without manual transfer, which removes handling steps, reduces operator errors, and makes output consistent across long production runs.
What the line outputs depends on the configuration. This is an important distinction buyers frequently miss:
- An Auto Duct Line 2 outputs flat cut-to-length blanks ready for separate folding and forming.
- An Auto Duct Line 3 outputs folded panels — L-shaped or U-shaped duct sections.
- An Auto Duct Line 4 or 5 outputs formed and flanged duct components, depending on the stations included.
- A U-shape Line 5 may complete folding into a closed rectangular section before the panel exits the cell.
Understanding what shape leaves the line is essential before comparing quotations. Two suppliers both offering “Line 5” may deliver components at very different stages of completion.
2.What Do Auto Duct Line 2, 3, 4, and 5 Mean?
Line numbering in the auto duct production line market is widely used but not standardized. The same number may describe different station configurations across manufacturers. That said, the numbers do reflect a broadly recognized industry pattern—and understanding that pattern helps buyers ask the right questions.
The table below reflects typical market conventions. Always verify the exact station scope with each supplier before comparing quotations.
Line numbering is not a universal technical standard. Exact functions, included stations, material ranges, and output forms vary by manufacturer. Use this table as a starting framework, not a specification. Always request a written station-by-station scope of supply before comparing prices.
3. Start With Your Duct Production Requirements
Before contacting any supplier, document the following. This information becomes the basis for every meaningful comparison between quotations.
3.1 Define Your Duct Mix and Connection Requirements
Start with the material itself. Most commercial HVAC duct production processes galvanized mild steel in a thickness range of approximately 0.5–1.5 mm. If your shop also runs stainless steel, aluminized steel, or pre-painted coil, confirm with each supplier that the line handles those materials without special tooling changes.
Note the duct width range you need to produce—minimum and maximum—and the panel lengths required. These directly govern the coil decoiler specification, leveling roller configuration, notching tooling, and the folding sequence.
Connection system is an equally critical input. Confirm whether your production relies on:
- TDF (transverse duct flange) connections — integral flanges formed along the duct panel edges
- Pittsburgh lock seams for the longitudinal joint
- Angle-iron flanges — a separate downstream operation requiring different equipment
TDF flange forming is an important configuration point because flange geometry directly affects downstream duct assembly, gasket seating, and cleat compatibility. If TDF is central to your product line, it must be included in the line specification from the start — not added as an afterthought after the order is placed.
Also consider the proportion of straight duct runs versus fittings, transitions, and non-standard pieces. A production line adds its greatest value on repeatable straight duct sections. If fittings account for a large share of your output, the utilization case for a high-integration line weakens.
3.2 Map the Current Workflow and Bottlenecks
Trace the path a duct section takes through your workshop today: coil receipt, blanking, forming, assembly, inspection, staging, and dispatch. Mark every point where material waits, workers transfer it by hand, or quality defects are discovered and corrected.
The goal is to locate the real bottleneck, not the most visible one. If blanking is slow and notching is inconsistent, an integrated line with automated blanking directly addresses your constraint. If the bottleneck is downstream — seam closing, corner insertion, or manual folding — a faster blanking line moves inventory forward faster but does not increase finished output. It moves the pile.
Identify this before specifying equipment.
3.3 Set Realistic Capacity Targets
Calculate your actual demand in square meters of finished duct per shift, not per theoretical machine-hour. Then apply realistic utilization: coil changes, size changeovers, maintenance intervals, operator breaks, and material staging all reduce effective output below rated speed.
A typical rule: plan at 65–80% of rated output for operational planning purposes. The exact figure depends on your product mix, batch sizes, and changeover frequency. Verify this assumption with your supplier before purchase, not after.
Set capacity targets at current peak demand plus a credible near-term growth allowance. Buying for a production volume that requires best-case conditions to justify means the ROI calculation only works on paper.
4.Compare Actual Capacity, Not Rated Speed
Capacity figures from auto duct line suppliers are not directly comparable without understanding the conditions behind them. Manufacturers report output in different units — meters per minute, pieces per hour, or square meters per day — and under different test assumptions.
A line rated at 2,000 m²/day under ideal test conditions may produce 1,200–1,400 m² in normal operation with your actual duct mix, changeover frequency, and coil sizes. Neither figure is dishonest; they measure different things.
Before accepting any capacity claim, ask the supplier to state:
- The duct dimensions used in the test (width, gauge, panel length)
- Whether the figure is theoretical maximum or measured operational output
- The number of coil changes and size changeovers assumed per shift
- Operator count during the test
- Whether TDF flange forming is active during the rated run
Do not compare m²/day figures between suppliers unless all these variables are equivalent. A useful alternative is to request a timed demonstration using your representative duct specifications and measure the output directly.
5.Compare Linear and U-Shape Auto Duct Lines
Layout configuration is a practical buying decision that many guides treat as a footnote. For shops with constrained floor space, it is often the deciding factor.
The U-shape configuration is not inherently faster or more capable than a linear line of equivalent specification. Its advantage is spatial efficiency and the reduced distance operators travel between the coil feed end and the finished-part exit.
If your workshop has a long bay and straightforward material flow, a linear configuration is simpler to install and maintain. If floor length is a constraint, a U-shape line may allow a higher-specification line to fit where a linear one would not.
6. Choose the Right Automation Level
Automation level is a practical choice between labor cost and capital cost — not a quality indicator. Higher automation reduces operator dependency and per-piece handling time; it also costs more upfront and concentrates failure risk in the line itself.
6.1 Operator Count — What the Numbers Actually Mean
The operator figures in the table above apply to the main forming line under normal continuous operation. They do not represent the total headcount for the duct fabrication cell.
The full cell typically also requires:
- Coil loading: moving and mounting coil stock to the decoiler — usually a crane or forklift operator
- Downstream seam closing: the longitudinal seam on the formed duct section typically requires a separate seam closer machine, which needs an operator
- Corner installation: TDF flange ducts require corner pieces to be inserted and crimped at each corner — typically manual or with a corner installing machine
- Finished-part handling and staging: moving completed duct sections to inspection, bundling, and dispatch
A fully automatic Line 5 that runs with one operator on the forming line may still require three to four people across the complete production cell. Evaluate total cell headcount, not only the headline operator count for the main machine.
7. Check the Core Machine Functions
Evaluate each station individually. Rated output is a result of all stations working correctly together — understanding each function separately is the only way to identify gaps before purchase.
Coil holder and decoiler. Confirm the supported coil width range, inner diameter, outer diameter, and maximum coil weight. An undersized decoiler forces more frequent coil changes and limits your material purchasing options.
Leveling unit. The leveling section removes coil set and sheet camber before forming begins. Ask how many leveling rollers the unit includes and what material thickness range they cover. Poor leveling at this stage creates dimensional error in every downstream operation.
Beading station. Beads stiffen the duct panel and prevent oil-canning after installation. Verify that bead pitch, depth, and pattern are adjustable to match your duct size range and any applicable fabrication standards.
Notching station. Notching removes corner material so folded panels close cleanly. Confirm the notch geometry, the duct size range the tooling covers, whether corner punching is included, and how the waste slug is handled.
Cutting unit. Cut-length accuracy affects corner fit-up and assembly consistency downstream. Ask for the cutting method (hydraulic shear or servo-driven), the stated dimensional repeatability, and the method for waste removal.

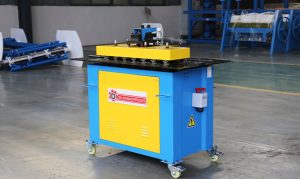

Pittsburgh lock seam forming. The lock former creates the longitudinal seam that closes the duct cross-section. Verify that the seam engages consistently across the full panel length, particularly at the ends near the flanges.
TDF flange forming. TDF flange forming creates the integral transverse flange along the required duct panel edges. Confirm the flange profile geometry, minimum corner radius, and compatibility with the TDF gaskets and corner pieces you use in assembly. Incompatible flange geometry is a costly post-installation discovery.
Folding. Confirm whether the folding station produces an L-shape, U-shape, or fully closed rectangular section, and what additional operations are required before the duct component reaches finished form.
8. Check CNC and Software Integration
Modern auto duct production lines use CNC controllers with parameter-driven size programming and saved job databases. The practical value of the control system depends on how it handles the realities of shop-floor operation, not its hardware specification.
8.1 Control System Usability
Evaluate how quickly an operator can switch between duct sizes. On a well-designed system, changing a standard duct program requires selecting a saved job or entering a few dimensions. A system that requires re-entering every parameter for each size change adds significant changeover time across a shift.
Also confirm:
- How many programs the system can store
- Whether programs can be exported, backed up, and restored
- What diagnostics the system provides for common forming faults
- Whether remote access is available for fault diagnosis and parameter support
8.2 CAD and Production Data Compatibility
For shops integrating duct production with estimating or project management workflows, ask whether the line accepts DXF or other common duct layout file formats for automatic programming. Some Line 4 and Line 5 systems support direct import from duct design software, which reduces manual data entry and eliminates a category of programming errors.
Even without full CAD integration, confirm that production data — job counts, material consumption, cycle times — can be exported for production reporting. For larger operations, compatibility with ERP or MES systems may be relevant.
9.Check Material Compatibility and Forming Accuracy
Supplier accuracy claims require verification, not trust. Before committing to a purchase, require the following in writing:
- Confirmed material grades and coil specifications the line handles
- Stated thickness range with any specific notes on coating types or surface treatments
- Minimum and maximum duct sizes for each tooling configuration
- Dimensional tolerance specification for cut length, duct width, notch geometry, and flange profile, with the measurement method used
During any demonstration or formal acceptance test, inspect:
- Cut edges for burrs, tearing, or variation across the panel length
- Notch geometry at corners for squareness and depth consistency
- Lock seam engagement for tightness and uniformity from end to end
- TDF flange cross-section profile and corner radius on multiple consecutive pieces
- Fold angles across several pieces produced under the same saved program
- Surface condition — no scoring, roller marking, or coating damage
Also examine build quality: frame rigidity, forming roll material and surface finish, guarding and safety interlock function, and accessibility of lubrication points and wear components.
10.Plan Floor Space and Auxiliary Equipment
Before finalizing a line specification, overlay the full machine envelope on your workshop drawing — including coil loading access at the feed end, finished-part clearance at the exit, service access on both long sides, and forklift or material cart paths between raw material storage and downstream stations.
Confirm electrical supply requirements, compressed-air demand, and any foundation or floor-loading specifications. Site preparation costs are real and do not appear in the machine price.
Auxiliary equipment requirements depend on the line configuration:
- Plasma or laser cutting machine for fittings, transitions, and non-rectangular blanks the main line cannot produce
- Seam closer for closing the longitudinal Pittsburgh lock seam on formed duct sections
- Corner installing machine for TDF flange ducts requiring corner pieces at each joint
- TDF flange forming machine as a standalone unit for runs that fall outside the main line’s size range
- Spiral duct forming machine where round or oval duct is part of the product mix
Map the material flow through the full cell. A Line 5 that outputs formed panels at high speed into a manual seam-closing station has moved the bottleneck rather than eliminated it. The complete cell throughput is determined by its slowest station.
11.Calculate Total Cost and ROI
Generic payback periods from supplier marketing materials are not useful inputs for a purchase decision. Build your own calculation using site-specific figures.
Acquisition cost includes: machine price, tooling for your standard product range, freight and import duties, site preparation, installation and commissioning, initial spare parts kit, operator and maintenance training, and required auxiliary equipment not included in the base machine price.
Annual operating cost includes: operator wages across all cell positions per shift, energy consumption, consumables and tooling wear, scheduled maintenance materials, and an estimate for unplanned downtime and reactive maintenance.
Annual net benefit includes: reduction in direct labor hours per unit of output, reduction in material scrap and rework from improved forming accuracy, and throughput increase expressed as additional completed duct area per shift.
Use this formula:
Simple payback = Total installed investment ÷ Annual net benefit
For example:
Run this calculation at three utilization scenarios — conservative (current volume), expected (planned growth), and optimistic (maximum scenario). If the investment only recovers at the optimistic case, the purchase carries more risk than it may appear.
Note that material yield savings are often underestimated. Accurate CNC-controlled notching and cutting reduces scrap per duct section compared to manual blanking. At high production volume, this compounds into a meaningful annual saving alongside labor.
12. How to Evaluate the Manufacturer
1.Factory and Technical Capability
Ask to see the manufacturing facility — in person if practical, or via live video walkthrough. Identify which critical components, particularly forming rolls and drive systems, are produced in-house and which are sourced from external suppliers. Ask about the implications for replacement part availability, lead times, and quality control.
ISO 9001 certification can help verify that a manufacturer’s quality management system is documented, but it does not by itself prove the forming accuracy, reliability, or suitability of a specific duct line. Treat certification as a baseline, then evaluate technical capability separately.
2.Relevant Experience
Request documented cases — machine specifications, material types processed, years in operation — from customers running comparable production volumes and duct configurations. Generic reference lists are less useful than specific evidence that a supplier has installed and supported the configuration you are evaluating.
3.After-Sales Support
Before signing, confirm:
- Who performs installation and commissioning, at what cost, and for how long
- Scope and language of operator and maintenance training, and whether it is delivered on-site
- Spare parts included with the machine, lead times for high-wear components, and emergency supply options
- Warranty duration, coverage scope, exclusions, and the claims process
- Whether the control system supports remote access for fault diagnosis and parameter adjustment
If a supplier is unwilling to document specifications or agree to pre-shipment testing, clarify the reason and assess the resulting commercial and technical risk before signing.
13.FAT and SAT — What to Test Before Purchase
The acceptance test is the most practical protection a buyer holds. Include it in the purchase contract before placing the order.
Factory Acceptance Test (FAT) is conducted at the supplier’s facility before shipment. Use your own supplied coil material — not the supplier’s test stock — and specify in the contract:
- Material grade, coating type, and thickness range to be tested
- Duct sizes and profiles representing both typical and demanding specifications from your product range
- TDF flange profile and lock seam geometry to be inspected
- Number of consecutive pieces required to demonstrate dimensional consistency
- At least one full changeover between different duct sizes
Record cut length accuracy, duct width, notch geometry, flange profile, seam engagement, fold squareness, and surface condition. Define pass/fail criteria before the test begins, not based on what you observe during it.
Site Acceptance Test (SAT) follows installation and confirms that the line performs in your actual workshop environment with your coil stock, utilities, and operators.
Documentation to confirm before releasing final payment:
- Electrical and pneumatic diagrams as built
- Maintenance manual and lubrication schedule
- Operator manual in the agreed language
- Spare parts list with part numbers
- Saved production programs for your standard duct size range
- FAT and SAT test reports with recorded measurements
Final payment before documentation is complete removes the supplier’s practical incentive to deliver it.
14.Questions to Ask Before Requesting a Quote
- Which duct materials, gauges, widths, and panel lengths does your standard line handle?
- Which stations are included as standard, which are optional, and which functions are outside the line’s scope?
- What is the TDF flange profile geometry, and which corner pieces, gaskets, and cleat systems is it compatible with?
- What is the actual measured changeover time between two different standard duct sizes — not the theoretical minimum?
- What are the installed footprint dimensions including service clearances, and what are the electrical and compressed-air requirements?
- Will you conduct the factory acceptance test using my supplied coil material, with pre-agreed pass/fail criteria?
- Which spare parts are included with the machine, and what are lead times for high-wear forming components?
- Who performs installation and commissioning, in what language is the operator training delivered, and what is included in the warranty?
15. FAQ
Q1: What is the difference between Auto Duct Line 2, 3, 4, and 5?
Answer: The numbers reflect increasing levels of integration. Line 2 typically covers blanking functions — decoiling, leveling, beading, notching, and cutting. Line 3 adds folding. Line 4 and 5 integrate lock seam forming, TDF flange forming, and higher levels of automation, with Line 5 generally representing faster servo-driven systems for high-volume production. Exact station configurations vary by manufacturer, so always compare the written scope of supply rather than the model number.
Q2: How many operators does an automatic duct production line require?
Answer: The main forming line on a fully automatic Line 4 or 5 typically runs with one to two operators. However, the complete duct fabrication cell — including coil loading, downstream seam closing, corner installation, and finished-part handling — typically requires three to four people in total. Evaluate total cell headcount, not only the headline figure for the main machine.
Q3: What material thickness can an auto duct production line process?
Answer: Most commercial auto duct lines handle galvanized mild steel in the range of 0.5–1.5 mm. Processing capability at the thicker end of that range depends on the leveling unit, notching tooling, and drive system specification. Stainless steel and other materials may require different tooling or reduced line speed. Confirm the specific grade, thickness, and coating compatibility with the supplier before purchase.
Q4: Should I choose a linear or U-shape auto duct production line?
Answer: If your workshop has a long production bay, a linear line is simpler to install and maintain. If floor length is a constraint, a U-shape configuration achieves a more compact footprint by reversing the material flow direction mid-line. Both can deliver equivalent output; the choice depends on your workshop dimensions and material handling preferences.
Q5: Do I need TDF flange forming integrated into the production line?
Answer: If TDF connections are standard in your market and assembly workflow, yes — integrating TDF flange forming into the line eliminates a separate downstream operation and ensures flange geometry is consistent across every piece. If your production uses angle-iron flanges or primarily Pittsburgh lock seams with separate flange operations, a lower-integration line may serve you better. Confirm TDF flange profile compatibility with your standard corner pieces and gaskets as part of the specification process.
Q6: What is the difference between rated speed and actual duct production output?
Answer: Rated speed is typically measured under continuous operation with a single duct size on a pre-loaded coil under test conditions. Actual production output accounts for coil changes, size changeovers, operator breaks, maintenance, and material staging — typically 65–80% of rated speed in normal operation. Do not compare suppliers using rated m²/day figures unless the test conditions, duct dimensions, and utilization assumptions are equivalent.
Q7: How do I calculate the ROI of an auto duct production line?
Answer: Use this formula: Simple payback = Total installed investment ÷ Annual net benefit. Annual net benefit includes labor cost reduction, material scrap and rework savings, and throughput value, minus additional maintenance and energy cost. Run the calculation at conservative, expected, and optimistic utilization levels. If the payback only works in the optimistic scenario, the investment carries higher risk than a mid-case justification would.
16.Make Your Decision Based on Your Production Workflow
The right auto duct production line is defined by what you make and how you make it — not by a model number, a supplier’s headline output claim, or a generic payback promise.
Start with your duct mix, material gauges, connection requirements, and current workflow bottlenecks. Understand what each line configuration outputs and at what stage of completion. Match automation level to your real production volume and total cell labor requirements. Confirm floor space including service clearances, and identify what auxiliary equipment is needed to complete the fabrication cell.
Build your ROI case on your own labor rates, scrap levels, and utilization — not on industry averages. Require a factory acceptance test using your material and your specifications, with pass/fail criteria agreed before the test begins.
When you are ready to approach suppliers, prepare a one-page production requirements summary: your duct mix, material grades and gauges, size range, required output per shift, floor space constraints, and downstream process. Submit that document first. The specificity and accuracy of each supplier’s response will tell you more than any catalogue comparison.
